6 Best Waterproof Relay Sockets For Auxiliary Lighting Systems

Few things dampen the spirit of an overland expedition faster than flickering auxiliary lights during a rainy night run through the backcountry. A reliable electrical foundation ensures that visibility remains constant when the trail gets technical and the weather turns sour. Choosing the right waterproof relay socket is the quiet difference between a smooth night on the trail and a roadside repair under a headlamp.

Disclosure: This site earns commissions from listed merchants at no cost to you. Thank you!

Nilight 5-Pin Relay Harness: Best Overall Kit

The Nilight 5-Pin harness stands out as the most balanced option for general auxiliary lighting needs. It includes a rugged, interlocking housing that keeps dust and moisture away from sensitive electrical connections. This kit is ideal for the weekend warrior who wants a simple, plug-and-play solution without needing a degree in automotive engineering.

Because it comes as a complete package with the relay included, the guesswork regarding compatibility is eliminated. The wire gauges are sufficient for standard LED pods and medium-sized light bars, making it perfect for most common 12V setups. If the goal is a straightforward, reliable installation that fits most budgets, this is the definitive choice.

WUPP 12V 40A Harness: The Best Budget Option

For those working on a tight budget or setting up a secondary auxiliary system, the WUPP 12V 40A harness provides surprising durability. While the construction is simpler than premium alternatives, it performs exactly as intended for light-duty accessories. It serves as an excellent entry point for beginners who are just starting to experiment with electrical mods.

The wiring is pre-tinned, which offers better corrosion resistance than raw copper in damp environments. While it might lack the heavy-duty weather seals found on more expensive units, it handles splashes and road grime effectively. Use this for budget-friendly builds where simplicity and cost-effectiveness take priority over extreme environmental protection.

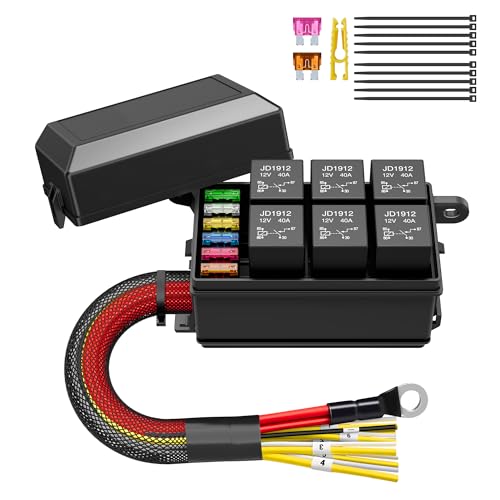

OLS 6-Slot Relay Box: Best for Multi-Light Rigs

When a rig carries multiple lighting zones—such as ditch lights, a front light bar, and rear-facing camp lights—individual relays quickly create a tangled mess under the hood. The OLS 6-Slot Relay Box centralizes these connections into one tidy, weather-sealed unit. It organizes the engine bay while ensuring that every accessory remains protected from moisture.

This system simplifies troubleshooting by consolidating fuses and relays in a single, accessible location. It requires a bit more planning during the initial installation compared to single harnesses, but the long-term payoff in organization is immense. This is the recommended choice for experienced overlanders who demand professional-level cable management.

HELLA 80A Heavy-Duty: For High-Power Light Bars

High-output lighting, such as large, multi-row LED bars or vintage halogen driving lights, demands significant current. The HELLA 80A relay socket is built for exactly this level of power delivery, featuring heavy-gauge wiring that won’t overheat under load. It provides the thermal headroom necessary to prevent voltage drops that cause lights to dim or flicker.

While bulkier than standard sockets, the build quality is industrial-grade. It is designed to endure high-vibration environments where lesser plastics might crack or lose their seal. Choose this if the lighting system consumes significant wattage and reliability under heavy, continuous use is the primary concern.

Pico Mini Relay Socket: Best for Tight Engine Bays

Space is a premium commodity in modern vehicles, especially when the engine bay is crowded with auxiliary batteries and intake systems. The Pico Mini Relay Socket is exceptionally compact, allowing for a clean installation in small, awkward gaps. Its slim profile makes it the go-to for custom installations where there is literally no room for a standard, oversized relay housing.

Despite the small size, these sockets are remarkably robust and hold relays firmly in place during aggressive off-road driving. They offer a modular approach, allowing for custom grouping of relays wherever space permits. This is the optimal solution for complex, space-constrained builds where every inch of engine bay real estate counts.

Delphi Metri-Pack Kit: Best for Custom Wiring

For the meticulous builder, the Delphi Metri-Pack system represents the gold standard of waterproof connections. These are the same style of connectors used by automotive manufacturers for their factory wiring harnesses. They provide an airtight, watertight seal that is virtually impervious to mud, salt, and water immersion.

Installing this system requires specific crimping tools and a higher level of patience than pre-wired harnesses. However, the result is a professional-grade, custom-tailored circuit that will likely outlast the vehicle itself. Invest in this kit if building a permanent, high-reliability expedition rig where failure is not an option.

How to Choose: Amps, Pins, and IP Ratings Guide

Selecting the right socket starts with understanding the current draw of the auxiliary lights. Always ensure the relay socket is rated for more amperage than the lights require to avoid heat buildup. A 40A socket is the industry standard for most lights, but high-draw halogen or large arrays may necessitate a 60A or 80A setup.

Check the pin configuration before purchasing, as most standard automotive relays use a 4-pin (SPST) or 5-pin (SPDT) layout. A 5-pin relay adds a normally closed circuit, which can be useful for advanced lighting features, though a 4-pin is sufficient for simple on-off operation. Finally, look for an IP67 or IP68 rating, which indicates the unit is effectively sealed against dust and temporary water immersion.

Key Installation Tips for a Waterproof Connection

A relay is only as waterproof as its connections, so ensure the wire entries are properly sealed with dielectric grease. This simple step prevents moisture from wicking into the wiring insulation and causing hidden corrosion. Always mount the relay socket with the wires pointing downward to prevent gravity from pooling water inside the housing.

Use high-quality heat shrink tubing on all external splices rather than simple electrical tape. Taping will eventually fail under heat, whereas marine-grade heat shrink creates a permanent barrier. Secure the relay housing to the chassis using rigid mounting points to minimize vibration, which is the primary cause of loose contact pins over time.

Troubleshooting: When Your New Off-Road Lights Fail

If the lights fail to illuminate, check the ground connection first, as it is the most frequent culprit in automotive electrical issues. A poor ground causes the relay to click without completing the circuit to the lights. Use a multimeter to verify that both the switch signal and the high-power feed have consistent voltage.

If the relay clicks but the lights stay dark, the problem usually lies in the load circuit—the wiring running from the relay to the lights. Inspect the fuse, which should be located as close to the battery as possible for maximum safety. If the relay does not click at all, check the trigger wire connection from the cab-mounted switch.

Do You Really Need a Relay for Auxiliary Lights?

While some low-wattage LED lights can be run directly through a switch, a relay is essential for almost any serious lighting project. Relays act as remote-controlled switches, allowing a small, low-current signal wire to control a high-current load. This prevents the primary switch from melting under the heat of high-draw lights and keeps thick power cables away from the interior of the dashboard.

Furthermore, utilizing a relay allows the power to be pulled directly from the battery rather than tapping into existing factory wiring. Tapping into factory circuits risks blowing sensitive vehicle fuses or damaging the vehicle’s computer. For any lights exceeding 50 watts, a relay is not just a suggestion—it is a non-negotiable safety requirement.

Reliable auxiliary lighting transforms the way an expedition unfolds after sunset, turning uncertain trails into clear, navigable paths. While the technical side of wiring can seem daunting, a methodical approach to component selection and installation ensures that every component performs exactly when needed. Prioritize quality connections and solid mounting, then focus on the horizon rather than the dash.
