6 Best Volt Sensitive Relays For Smart Charging Systems

Staring at a dead starter battery in the middle of a remote trailhead parking lot is a rite of passage no adventurer wants to repeat. A well-designed smart charging system acts as an invisible guardian, ensuring the house battery powers the fridge and lights without ever compromising the ability to turn the ignition key. Selecting the right voltage-sensitive relay (VSR) is the difference between a seamless basecamp experience and a high-stakes search for jumper cables.

Disclosure: This site earns commissions from listed merchants at no cost to you. Thank you!

Blue Sea ML-ACR: The Ultimate Heavy-Duty Choice

When the goal involves high-output alternators and massive battery banks, the Blue Sea ML-ACR stands in a league of its own. This unit is rated for a continuous 500 amps, making it the gold standard for heavy-duty overland rigs or expedition vehicles with serious power demands. Its magnetic latching technology consumes minimal power while engaged, which protects the system from the heat build-up commonly associated with traditional solenoids.

The unit features manual override capabilities, providing an essential fail-safe if the primary battery goes flat during an extended stay at a remote site. This level of robustness adds weight and complexity to the installation, but the peace of mind offered by such a substantial relay is unmatched. It is the clear choice for anyone building a long-term, high-draw setup intended to survive the most punishing vibration and temperature extremes.

Invest in the ML-ACR if the vehicle operates in demanding backcountry environments where reliability is non-negotiable. If the build remains modest, however, the sheer size and cost of this unit might prove excessive. Choose this relay only when the power system demands true heavy-duty performance.

Keyline 140A Isolator: Best All-Around Performer

The Keyline 140A represents the sweet spot for the vast majority of dual battery configurations. It offers a balance of straightforward installation, reliable voltage-sensing thresholds, and an accessible price point that appeals to weekend warriors and DIY van builders alike. The unit reliably connects the batteries when the alternator reaches a sufficient charge level and disconnects them immediately upon engine shutdown.

Its 140-amp rating comfortably handles standard alternator outputs found in most pickup trucks and SUVs used for camping. The housing is designed for easy mounting, with terminal posts that simplify the wiring process for those without advanced electrical experience. It effectively manages the flow of electricity without the need for complex monitoring systems or frequent manual adjustments.

This isolator is the ideal candidate for anyone looking to power a small 12-volt fridge and a few LED lanterns over a long weekend. While it lacks the extreme overhead of heavy-duty commercial units, its simplicity and effectiveness make it a standout for standard recreational builds. It is the go-to solution for reliable, plug-and-play energy management.

REDARC BCDC1225D: The Premium DC-to-DC Solution

Technically a charger rather than a simple relay, the REDARC BCDC1225D addresses the limitations of modern “smart” alternators that often fail to push enough voltage to charge secondary batteries fully. By actively boosting voltage levels, this unit ensures that lithium or deep-cycle batteries receive the precise profile they need to reach a 100% state of charge. The integrated MPPT solar regulator further enhances utility by managing solar panel input simultaneously.

Because it controls the charging profile, this device significantly extends the lifespan of sensitive battery chemistries like LiFePO4. It is far more sophisticated than a standard VSR, as it prevents the house battery from drawing too much current from the alternator, which protects the vehicle’s electrical system from undue stress. The trade-off is a significantly higher price and a more involved installation process.

Opt for the REDARC when the vehicle uses a modern variable-voltage alternator or when relying heavily on lithium battery technology. It is a premium investment for travelers who value efficiency and battery longevity above all else. For those with older vehicles and simple lead-acid batteries, a standard relay might suffice, but for serious power needs, this is the definitive upgrade.

WirthCo Battery Doctor: A Solid Budget-Friendly VSR

The WirthCo Battery Doctor offers a functional and economical path to dual-battery management. It is a no-frills, 125-amp isolator that gets the job done without unnecessary features or premium price tags. This unit is well-suited for entry-level builds where the budget is better spent on higher-capacity batteries or durable wiring components.

Its compact design allows for installation in tight engine bays, which is a significant advantage in smaller vehicles where space is at a premium. While it lacks the heavy-duty shielding of more expensive models, it provides consistent performance under typical operating conditions. Users will appreciate the straightforward light indicator that confirms when the batteries are successfully linked.

This product serves as an excellent starting point for those new to off-grid power who want to dip their toes into the dual-battery world. It is not designed for massive electrical loads, but for powering lights and basic charging, it provides reliable results. It is the practical choice for the budget-conscious adventurer who prioritizes utility over bells and whistles.

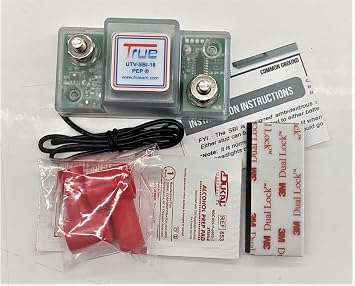

TrueAm UTV-SBI-18: Best for UTVs and Side-by-Sides

Off-road adventure in a UTV requires a specialized approach due to limited space and intense environmental exposure. The TrueAm UTV-SBI-18 is specifically engineered for the unique electrical profiles of powersports vehicles, featuring a dual-sensing capability that ensures both batteries stay charged regardless of which one is being drawn upon. Its small form factor and water-resistant construction make it nearly immune to mud, dust, and heavy vibrations.

This unit is designed to work seamlessly with the factory electrical systems found in most modern side-by-sides, preventing the common “dead battery in the woods” scenario. The installation kits are often vehicle-specific, which drastically reduces the frustration of routing cables in cramped chassis. It offers peace of mind for those relying on their UTV for long-haul trail exploration or remote gear transport.

If the vehicle is a UTV or an ATV, look no further than this specialized unit. It addresses the vibration and space constraints of powersports gear better than any generic automotive relay. It is a specialized, highly effective tool for those who spend their weekends tearing through technical terrain.

Stinger SGP32: Top VSR for High-Amperage Setups

The Stinger SGP32 is a heavy-duty battery isolator capable of handling up to 200 amps of continuous current. This makes it an excellent choice for enthusiasts who run high-draw accessories like powerful inverters, winches, or aftermarket audio systems. Its robust construction is designed to withstand the heat generated by sustained high-amperage flow, a common failure point for cheaper alternatives.

The simplicity of the SGP32 is its greatest strength; it functions as a high-capacity relay that remains transparent to the user. It effectively prevents the secondary battery from discharging the starting battery, ensuring the engine always turns over, even after a full night of powering gear. The internal components are sealed against the elements, making it suitable for mounting in exposed locations.

Choose the Stinger if the build involves high-wattage equipment that demands a beefy, reliable relay capable of handling sustained heat. It is a workhorse component that bridges the gap between standard automotive relays and specialized expedition gear. For those running power-hungry accessories, this relay provides the necessary current handling to operate safely.

How to Pick a VSR: Amps, Triggers, and More

Choosing the right relay begins with calculating the maximum amperage draw of all accessories connected to the house battery. Ensure the VSR’s continuous amperage rating exceeds this total to prevent overheating and premature failure. Always check the engagement and disengagement voltage thresholds, as some units trigger too early, potentially putting extra load on the alternator.

Consider the environment in which the vehicle operates as well. If the relay will be mounted in an engine bay subject to extreme heat or moisture, prioritize units with high IP ratings and solid-state construction. Simple solenoid-style relays are effective, but digital or magnetic-latching units generally offer better efficiency and lower power consumption over the long term.

Finally, match the relay’s technology to the battery chemistry. While simple relays work fine for lead-acid or AGM batteries, lithium batteries often require more precise charging profiles to protect their internal management systems. When in doubt, lean toward a higher amperage rating; having extra capacity is always safer than running a component at its absolute limit.

VSR vs. DC-to-DC Charger: What’s the Difference?

A VSR acts as a simple switch, opening a circuit between the starter and house battery once the charging voltage hits a certain point. It relies entirely on the vehicle’s alternator to dictate the charging current and voltage, which is sufficient for basic lead-acid setups. It is an affordable and effective way to ensure the starter battery stays isolated while the vehicle is off.

A DC-to-DC charger, by contrast, is an intelligent device that regulates the voltage and current flowing into the house battery. It performs a sophisticated, multi-stage charge that optimizes the health and capacity of the battery. Modern vehicles with smart alternators that fluctuate voltage during driving practically require a DC-to-DC charger to function correctly.

While a VSR is a “dumb” switch, a DC-to-DC charger is an active manager of the electrical system. If the build uses advanced battery chemistries or requires maximum charging efficiency, a charger is worth the investment. Use a VSR for simple, robust setups and a DC-to-DC charger for precision, battery longevity, and modern vehicle compatibility.

Essential Tips for Wiring Your Dual Battery System

The most common point of failure in a dual battery system is not the relay itself, but the quality of the connections. Always use high-quality, fine-stranded copper cable sized appropriately for the amperage load to minimize voltage drop. Secure every connection with heat-shrink tubing and corrosion-resistant terminals to withstand the rigors of the road.

Install a fuse or circuit breaker as close to the positive terminal of both batteries as possible. This is the single most important safety step, as it protects the wiring from fire in the event of a short circuit. Keep the wire runs as short as possible, as unnecessary length introduces resistance that hinders charging efficiency.

Proper grounding is equally critical; ensure the house battery shares a solid, clean ground connection with the chassis. Double-check all connections after the first few long trips, as engine vibrations can loosen fasteners over time. A clean, well-organized wiring job is not just about aesthetics—it is the foundation of a system that will last for years.

Troubleshooting Your Smart Charging System Setup

When the house battery refuses to charge, begin by verifying the voltage at the relay terminals. Use a multimeter to check if the voltage is rising above the relay’s trigger threshold while the engine is running. If the relay doesn’t engage, check the ground connection to the relay first, as a poor ground is the most frequent culprit behind electrical issues.

If the relay clicks repeatedly, this is often a sign of “voltage oscillation,” where the load on the batteries is causing the voltage to drop below the threshold almost immediately. Check for loose connections or oxidized terminals that might be causing high resistance in the circuit. Ensure the house battery is not completely drained; if it is, the relay may struggle to bridge the two batteries safely.

For those using DC-to-DC chargers, consult the LED diagnostic codes on the unit, as these provide specific insights into input voltage or thermal protection triggers. Keep a simple multimeter in the vehicle tool kit at all times for quick checks. Methodical testing usually reveals that the issue is a simple fix like a corroded connection or a blown fuse.

Smart charging systems are meant to facilitate freedom, not create maintenance burdens. By matching the right relay or charger to the specific demands of the adventure, the focus stays where it belongs: on the trail, the peak, or the quiet stretch of road ahead. Equip the vehicle properly, maintain the connections with care, and enjoy the convenience of reliable power anywhere the map leads.
