Nothing disrupts a backcountry excursion faster than a trailer light flickering out on a remote mountain pass. Reliable electrical connections are the invisible backbone of any successful off-road rig, keeping indicators and brake lights functional through mud, washboard roads, and deep river crossings. Choosing the right connector ensures that legal compliance and road safety remain consistent, no matter how far the pavement ends.
|
|
|
|
$11.99
|
$31.99
|
$38.99
|
Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!
Deutsch DT Series Connectors: The Gold Standard
Deutsch DT connectors are the undisputed heavyweights of the off-road world, designed specifically for harsh environments where vibration and moisture are constant threats. Their sealed, locking thermoplastic housings prevent pins from backing out during the most aggressive trail sections. If the trailer undergoes frequent submersion or lives on dusty, high-vibration terrain, this is the only reliable choice.
The locking mechanism creates a tight, consistent seal that resists contaminants like grit and salt better than any other standard automotive connector. While the initial installation requires a specialized crimping tool, the long-term reliability justifies the extra effort. For those building a custom wiring harness that needs to last for years, Deutsch DT is the investment that prevents future headaches.
Weather Pack Connectors: A Tried-and-True Option
Weather Pack connectors have long been the go-to for automotive enthusiasts looking for a balance between extreme durability and ease of access. These connectors feature individual silicone seals on each wire, which provide an excellent secondary line of defense against oxidation. They are widely available and simpler to service in the field than more proprietary sealed systems.
Because they are modular, they allow for quick repairs or the addition of extra lights without re-wiring an entire circuit. They are ideally suited for mid-level off-road trailers where exposure is moderate but consistent. Anyone prioritizing long-term field serviceability over absolute military-grade waterproofing should choose the Weather Pack.
CURT 7-Way RV Blade Connector: For Heavy-Duty Rigs
The 7-way RV blade connector is the universal language of modern travel trailers and heavy-duty expedition rigs. It provides power for essential lighting, electric brakes, and auxiliary battery charging in one secure, standardized package. This is the connector of choice for anyone towing a large trailer that requires synchronized braking and independent battery management.
The blade-style contact points are designed to be self-cleaning, preventing the buildup of debris that often plagues smaller pin-style connectors. Ensure the socket on the tow vehicle is mounted high enough to avoid impact with uneven terrain, as the plastic housing can crack upon heavy contact. For the serious overlander pulling a substantial load, this is the industry standard for a reason.

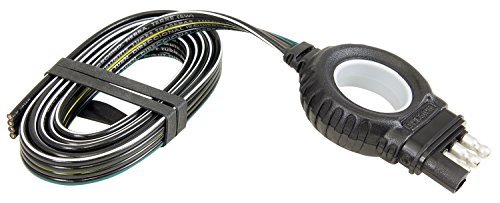

Hopkins Endurance 4-Pin Flat: For Simple Setups
For small, lightweight trailers or simple utility setups, the 4-pin flat connector offers the most straightforward solution available. These are ideal for basic functionality: left turn, right turn, tail lights, and ground. The Hopkins Endurance line specifically improves upon the generic flat 4 design by incorporating a more durable, corrosion-resistant housing and a dust cover that actually stays attached.
Installation is incredibly fast, often requiring only basic wire strippers and heat-shrink butt connectors. It is important to note that these connectors lack the shielding and locking mechanisms of the heavy-duty alternatives, meaning they are best kept on well-maintained fire roads or highway stretches. If the trailer is light and the usage is strictly recreational, the Endurance 4-Pin is the efficient, budget-friendly choice.
Pollak 7-Pole Round Pin Connector: Commercial Grade
Pollak 7-pole connectors rely on round, solid pins rather than flat blades, making them the preferred choice for commercial and agricultural-grade equipment. These connectors offer a remarkably positive engagement, often featuring a metal housing that is far more resistant to mechanical impact than standard plastic variants. The internal design keeps the electrical contacts separated and secure even when subject to constant, high-frequency vibration.
They are rugged enough to withstand years of abuse, though they are less common in standard RV and consumer trailer ecosystems. If the trailer is being used for heavy, multi-day hauling over punishing terrain, the durability of a Pollak round pin is worth the trade-off in compatibility. This is a specialized choice for the user who prioritizes sheer structural integrity over ubiquitous convenience.
Bargman 7-Way Trailer End Connector: RV Favorite
Bargman connectors are the ubiquitous standard found on nearly every factory-built camper trailer on the road. They are designed for reliability in standard touring conditions and offer excellent internal strain relief to protect wire connections from snapping. For the user who wants parts that are easily sourced at any truck stop or RV center, the Bargman remains the benchmark.
While the plastic housing is not as impact-resistant as a metal military-style plug, it is more than sufficient for most forest service roads and established campsites. If the trailer is a stock camper and the goal is simple, reliable compatibility with the tow vehicle, sticking with the Bargman system is the path of least resistance. It is the practical choice for those who prefer to spend time camping rather than troubleshooting electrical components.
Heat Shrink Butt Connectors: The DIY Waterproof Fix
Even the best connectors are only as good as the wiring behind them, and heat shrink butt connectors are the essential tool for finalizing those connections. These connectors feature an integrated adhesive-lined sleeve that shrinks around the wire insulation as it is heated, creating a permanent, watertight seal. This prevents the “wicking” effect where moisture travels up the copper wire and causes hidden corrosion inside the cable shielding.
Avoid traditional plastic crimp connectors, as they allow moisture to enter the copper strands and quickly degrade the circuit. Using a proper heat gun rather than an open flame ensures the tubing shrinks evenly and the adhesive bonds properly without melting the insulation. This small step in the installation process is the difference between a lighting system that lasts one season and one that lasts a decade.
Choosing Your Connector: 4-Pin, 7-Pin, or Custom?
The decision between a 4-pin and a 7-pin system ultimately boils down to what the trailer needs to perform its functions. A 4-pin setup is sufficient for basic signals, but it offers zero room for trailer brakes, interior cabin power, or battery charging. Always verify the legal requirements for trailer brakes in the specific region and the GVWR (Gross Vehicle Weight Rating) of the rig before settling on a connector.
If the adventure involves steep grades or heavier loads, a 7-way connector is mandatory for the integration of an electronic brake controller. For custom builds or high-end off-road projects, many enthusiasts choose to wire the lights using military-spec circular connectors for the ultimate in weatherproofing. Match the connector to the system requirements first, and durability second, to ensure total compatibility during the trip.
Waterproofing Your Wiring: The Key to Reliability
Waterproofing starts long before the trailer touches the water; it begins with the correct routing and protection of the wiring harness. Use convoluted tubing or braided sleeving to protect the wires from abrasion caused by trail debris and chassis vibration. Ensure there is enough “slack” at the connection point so the cable does not experience tension during sharp turns or extreme suspension articulation.
Apply a small amount of dielectric grease inside the pins of any connector before plugging it in to further prevent moisture ingress. This simple, inexpensive practice is a critical safeguard against corrosion in humid or coastal environments. A well-maintained connection, kept clean and dry, is the single best way to ensure no electrical gremlins ruin the next trip.
Installation Tips & Tools for a Clean, Safe Job
A professional-grade installation requires three tools: a proper ratcheting crimper, a heat gun, and a set of wire strippers. Never rely on the “squish” of a generic pliers-based crimper, as these often fail to provide the mechanical connection needed for long-term reliability. A solid, deep crimp is the foundation of any circuit that will endure the constant jarring of off-road travel.
Once the crimp is set, secure all wiring harnesses to the trailer frame using rubber-coated P-clamps spaced every 12 to 18 inches. Avoid zip ties alone, as they tend to become brittle in the sun or cut through insulation when the harness moves under load. A clean, secure harness not only looks professional but prevents the wiring from sagging into harm’s way on the trail.
Taking the time to harden your trailer’s electrical system before the first trip of the season pays dividends in peace of mind. While it might be tempting to opt for a quick patch, investing in quality connectors and proper installation techniques keeps the focus where it belongs: on the trail ahead. Pack a spare set of fuses and a basic test light, then get out there and explore with confidence.
Frequently Asked Questions (FAQs)
What is a Deutsch connector for off-road trailer lights?
A Deutsch DT connector is a heavy-duty, multi-pin thermoplastic plug engineered with silicone seals to keep dust, mud, and high-pressure water off trailer wiring connections. These connectors handle between 14 AWG and 20 AWG wire and lock together with a positive snap latch that prevents disconnections caused by chassis vibration. They carry an IP68 rating, making them ideal for exterior harness junctions exposed to deep water crossings and washboard gravel roads.
What does an IP68 waterproof rating mean for trailer wiring connectors?
An IP68 waterproof rating indicates that a trailer wiring connector is completely dust-tight and protected against continuous submersion in water under specified pressure and depth. For off-road trailer lights, this rating guarantees the plug survives prolonged river fords deeper than 1 meter without letting moisture enter the terminal housing. Connectors lacking an IP67 or IP68 seal frequently suffer from internal pin corrosion, causing premature lighting ground failures.
How do I install heat shrink butt connectors on off-road trailer lights?
Installing heat shrink butt connectors requires stripping a quarter-inch of insulation from each wire, crimping the metal barrel with a ratcheting crimper, and heating the adhesive jacket. Use a dedicated heat gun set around 500 degrees Fahrenheit rather than an open lighter flame to shrink the polyolefin tubing evenly. Watch for the internal hot-melt sealant to ooze out of both ends, which verifies a permanent, waterproof barrier against mud and trail grit.
How do I wire a 7-way blade connector for an off-road overland trailer?
Wiring an off-road 7-way blade connector involves matching the standardized trailer wire colors to their designated pins inside the heavy-duty housing. Connect white to ground on terminal 1, blue to electric brakes on terminal 2, green to right turn and brake on terminal 3, black to 12V auxiliary power on terminal 4, red to left turn and brake on terminal 5, and brown to running lights on terminal 6. Coat all terminals with dielectric grease before securing the weather boot.
Are Deutsch connectors better than heat shrink butt connectors for off-road trailer lights?
Deutsch connectors are better than heat shrink butt connectors when you need a serviceable, quick-disconnect point for removable trailer lights or modular camping accessories. Heat shrink butt connectors create a permanent inline splice that takes up less physical space along tight frame rails and costs significantly less per wire run. Choose Deutsch plugs for main harness disconnects and tail light pods, but use heat shrink crimps for permanent chassis runs.
How much do waterproof electrical wiring connectors for off-road trailer lights cost?
Waterproof electrical wiring connectors for off-road trailer lights range from 50 cents to 15 dollars per junction, depending on the connector style and pin capacity. Bulk packs of adhesive-lined heat shrink butt connectors cost roughly $15 to $25 for 100 pieces. Genuine multi-pin sealed plugs, such as 2-pin to 6-pin Deutsch DT kits, cost between $5 and $12 per complete male-female assembly with pins and silicone seals included.
Why do off-road trailer lights flicker or stop working after driving on rough trails?
Off-road trailer lights flicker or stop working primarily because trail vibration and frame flex loosen weak ground connections or poor crimps. Unsealed quick-splice taps and standard spade connectors allow trail mud, dust, and wash water inside the contact points, generating rapid corrosion and voltage drop. To diagnose the fault, test continuity at the chassis ground bolt using a digital multimeter before checking individual light connectors.
Are solder and seal wire connectors safe enough for rugged off-road trailer use?
Solder and seal wire connectors are generally not recommended for rugged off-road trailers because low-temperature solder can crack when subjected to continuous chassis vibration and frame flexing. Off-road vehicle wiring standards strongly favor mechanical crimps with adhesive-lined heat shrink. A proper mechanical crimp allows stranded copper wire to flex slightly without work-hardening, whereas soldered joints create a rigid stress point where the wire strand frequently breaks just behind the joint on rocky terrain.
