6 Pneumatic Tubing Connectors For Onboard Air Systems

When a tire deflates in the backcountry, the difference between a quick roadside fix and a long, stranded night often comes down to the reliability of an onboard air system. Choosing the right pneumatic tubing connectors ensures that high-pressure air stays in the lines rather than leaking into the mountain air. Invest in robust fittings now to guarantee that tire inflation and air locker engagement function flawlessly when the trail turns technical.

Disclosure: This site earns commissions from listed merchants at no cost to you. Thank you!

ARB Push-To-Connect Fittings: Best Overall

For those who rely on an onboard air system to power differential lockers and tire inflation, ARB push-to-connect fittings represent the industry benchmark. These fittings are engineered specifically for the harsh vibrations and extreme temperature fluctuations encountered on high-altitude passes and washboard desert roads. The internal grab-ring design holds tubing firmly, minimizing the risk of a blowout during high-demand scenarios.

These connectors excel because they prioritize ease of use without sacrificing structural integrity. If you are building a system from scratch and want a “set it and forget it” solution, these are the clear choice. They integrate seamlessly with standard nylon tubing, making field repairs straightforward even with basic tools.

The trade-off is a slightly higher price point compared to generic industrial hardware. However, for a critical system that ensures traction, this is a premium worth paying. These fittings are the definitive choice for the serious overlander who demands consistent performance across diverse terrains.

Viair DOT Air Brake Fittings: Most Durable

If the vehicle’s air system is exposed to the elements or mounted beneath the chassis, durability is the only metric that matters. Viair DOT-approved air brake fittings are designed to meet rigorous Department of Transportation standards, ensuring they can handle the constant road spray, mud, and debris common in off-road environments. Their construction is thicker than standard industrial fittings, offering superior resistance to mechanical impact.

These fittings are ideal for users who prioritize longevity over weight savings. Because they comply with heavy-duty vehicle regulations, they offer a level of security that generic hardware simply cannot match. When crossing creek beds or navigating rock gardens, the extra material thickness provides peace of mind against accidental snags.

While they are bulkier and heavier, the trade-off is a significantly lower failure rate. Choose these if the vehicle spends extended time in harsh, abrasive conditions where maintenance access is difficult. For those who prioritize total system reliability above all else, these are the gold standard.

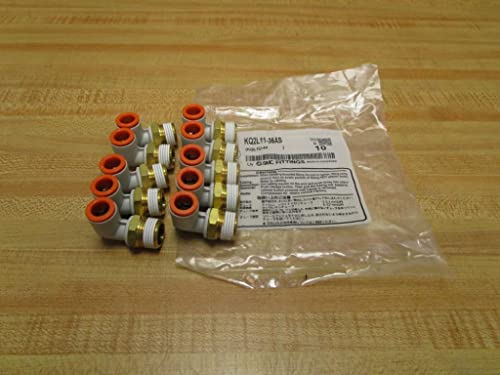

SMC KQ2 Series Connectors: Top Lightweight

Weight management is a constant balancing act for those building custom rigs, and the SMC KQ2 series is the ultimate solution for keeping the air system light. These connectors use a sophisticated resin body design that significantly reduces mass without compromising the airtight seal. They are perfect for compact engine bays or custom setups where space and weight efficiency are at a premium.

Despite their light weight, these fittings maintain a high level of operational precision. They are widely used in professional automation, meaning their tolerance for repetitive cycles—like constant locking and unlocking of differentials—is exceptionally high. They are the go-to for those who value refined engineering and clean, organized plumbing.

Be aware that these are not designed for direct impact or heavy physical abuse. If the tubing routing is exposed to potential contact, look for more rugged options. For protected, internal installations, the SMC KQ2 series provides an unbeatable combination of precision, weight, and performance.

Parker Prestolok Brass Fittings: Heavy Duty

When a project demands industrial-grade toughness, Parker Prestolok brass fittings stand in a class of their own. These fittings offer the mechanical strength of brass, making them virtually immune to the heat generated by hardworking air compressors. The robust construction ensures that threads do not strip under the vibration of a long washboard descent.

These connectors are the preferred choice for fixed-mount systems that see frequent, high-pressure use. They handle pressure spikes with ease, providing a steady, reliable connection for inflation hoses or suspension air bags. They are essentially over-engineered for most recreational rigs, which is exactly why they are so reliable.

The primary trade-off is the weight and the potential for a higher cost per unit. However, if the rig is a heavy-duty expedition vehicle that stays on the trail for weeks at a time, the extra robustness is a massive advantage. These are recommended for any user who prioritizes bulletproof, long-term reliability over ease of installation.

Legris Brass Push-In Fittings: Leak Proof

Leak prevention is the primary challenge in pneumatic systems, and Legris brass push-in fittings are specifically designed to eliminate the common slow leaks that drain batteries and tax compressors. The internal seal geometry is tighter than standard fittings, ensuring an airtight connection even after repeated insertions and removals of the tubing. For those who frequently adjust their air lines, these offer the best protection against degradation.

The metal-to-metal construction combined with high-quality seals makes these remarkably resistant to temperature swings. Whether parked at a sub-zero trailhead or idling in a hot desert canyon, the connection remains stable. This stability prevents the “cycling” effect where a compressor kicks on needlessly to compensate for minor pressure losses.

If you are frustrated by a system that loses pressure overnight, upgrading to Legris fittings is the most effective fix. They are slightly more expensive, but the payoff is a quiet, reliable system. These are perfect for the meticulous builder who values a leak-free environment above all else.

Milton V-Style High Flow: Best Quick Connect

While the previous fittings are for permanent plumbing, the Milton V-style quick connect is the ultimate tool for air distribution at the end of the line. High flow rate is essential for tire inflation; a bottleneck here can turn a five-minute tire refill into a twenty-minute chore. These fittings maximize the air volume delivered to the tire, reducing compressor strain and saving valuable time at the end of a long day on the trail.

The V-style design is specifically engineered for high-demand, high-pressure tasks. It provides a tactile, positive engagement that is easy to operate even with gloved hands. This makes them the best choice for a trailside setup where speed and efficiency are the primary goals.

They are strictly for the interface between the hose and the tool, not for the permanent tubing behind the dash. Always pair these with a robust, high-flow whip hose to fully realize the benefits. For those who value quick, efficient tire inflation, these are essential components.

How to Match Tubing Sizes to Air Connectors

1. Measure the Outside Diameter (OD): Pneumatic fittings are strictly sized by the tubing’s outside diameter, not the inside. Use digital calipers to ensure an exact measurement of 1/4″, 3/8″, or 1/2″.
2. Verify Material Compatibility: Always match the tubing material—such as polyurethane or nylon—to the fitting’s compression rating. Mismatched materials can lead to tubing slippage or seal failure.
3. Check Pressure Ratings: Ensure the tubing’s burst pressure exceeds the maximum output of the onboard compressor. Using thin-walled tubing with high-output compressors is a common cause of roadside blowouts.
4. Account for Bend Radius: When routing tubing, ensure the curves are gentle. Sharp kinks at the fitting can create stress points that lead to premature leaks, regardless of the fitting’s quality.

Diagnosing and Fixing Common Air System Leaks

The most reliable way to find a leak is a simple spray bottle filled with a mixture of dish soap and water. Spray all connections while the system is under full pressure and watch for bubbling. Even a microscopic bubble indicates a leak that will eventually drain the air tank and cause the compressor to overheat.

If a leak is found at a push-to-connect fitting, the tubing likely has a nick or a score on the outer surface. To fix this, cut a fresh, clean end on the tubing with a dedicated tube cutter rather than diagonal pliers. A square, clean edge is the only way to ensure the internal O-ring maintains a perfect seal.

If the fitting itself is leaking, check that it is tightened correctly if it is threaded, or replace it if the internal locking teeth are damaged. Never attempt to force a fitting that is clearly cross-threaded. A small investment in spare fittings and a few feet of extra tubing kept in the gear kit will prevent a minor leak from ending the adventure early.

Brass vs Plastic Fittings on Rugged Terrain

• Brass Fittings: These offer superior impact resistance and are essential for areas under the chassis where rocks or debris might strike the lines. They are heavier and more expensive but provide the longest service life in abusive conditions.
• Plastic/Composite Fittings: These are excellent for under-dash or engine-bay installations where weight and space are limited. They do not corrode, making them ideal for coastal or high-humidity environments, provided they are shielded from physical impact.
• The Hybrid Approach: Most seasoned builders use a mix, placing robust brass at the compressor and chassis-exposed points, while utilizing lightweight plastic for the control lines within the cabin.

Essential Trail Maintenance for Air Systems

Before every major trip, conduct a “pressure-hold” test by inflating the system to max capacity and listening for hisses after the compressor shuts off. If the compressor cycles on while the vehicle is parked, a leak exists. Addressing this before leaving the garage is far easier than crawling under the truck in the mud.

Periodically inspect the tubing for heat damage, particularly near the exhaust manifold or turbo piping. Heat makes the tubing brittle and prone to snapping under pressure. If the tubing feels hard or shows signs of cracking, replace that section immediately to avoid a total system failure miles from help.

Finally, keep a small assortment of “union” connectors in the glovebox. These allow for a simple bypass of a damaged line or a quick splice if a section of tubing is compromised. A proactive mindset toward air system maintenance keeps the focus on the trail rather than the repairs.

With the right connections, your air system will be one of the most reliable tools in your gear inventory. Invest in the fittings that match the terrain you intend to conquer, and you will spend far less time tethered to your vehicle and far more time exploring the wilderness. Pack your repair kit, keep the lines clean, and get out there with confidence.
