6 Tube Support Inserts For Pressure Reinforcement Projects

Nothing halts a backcountry water filtration setup or a pressurized camp stove fuel line faster than a collapsed tube fitting. While these small components often go unnoticed, they serve as the silent backbone of pressurized systems, preventing tubing deformation and ensuring a leak-free seal. Mastering the selection of tube support inserts is the difference between a seamless campsite setup and an afternoon spent troubleshooting equipment failures.

Disclosure: This site earns commissions from listed merchants at no cost to you. Thank you!

SMC Brass Tube Insert: Best for Water Systems

When configuring water filtration lines or gravity-fed systems for extended trips, brass remains the gold standard for corrosion resistance. The SMC brass tube insert is specifically engineered to hold its shape under the constant pressure fluctuations found in high-flow water pumps. Its dense, metallic composition ensures the tubing wall stays rigid, preventing the connection from slipping during high-pressure cycles.

For those planning to use the same equipment across varying climates—from humid lowlands to arid alpine environments—the resilience of brass is hard to beat. It does not degrade when exposed to moisture or temperature swings, making it a reliable choice for long-term gear kits. This insert is the ideal companion for anyone who prioritizes a “set it and forget it” mentality for their water infrastructure.

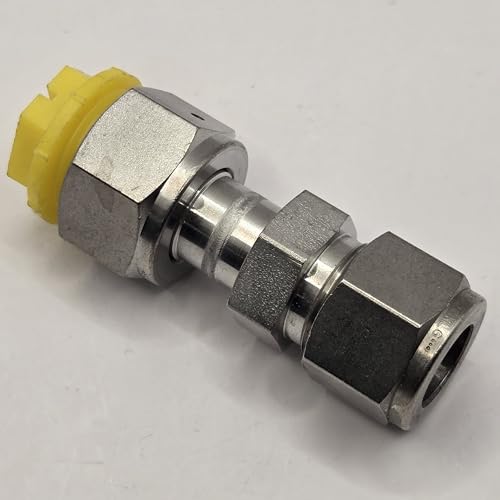

Swagelok Stainless Insert: Ultimate Durability

In environments where gear is subject to extreme mechanical stress, such as expedition-grade fuel lines or high-pressure stove arrays, stainless steel is the logical choice. The Swagelok stainless insert provides superior structural integrity that far exceeds standard plastic or brass alternatives. It effectively prevents tubing crimping even when the line is subjected to tight bends or heavy physical impacts on rocky terrain.

While these inserts carry a higher price point and add a nominal amount of weight to a kit, the trade-off is unparalleled longevity. They are specifically recommended for remote, multi-week excursions where equipment failure is not an option and repair options are non-existent. Invest in these if the mission demands absolute gear reliability in unforgiving conditions.

Parker Hannifin Brass Insert: Top Value Choice

The Parker Hannifin brass insert balances professional-grade durability with an accessible price point, making it a staple for the pragmatic adventurer. It offers consistent wall thickness and a precise finish that ensures a snug fit inside standard polyurethane or nylon tubing. This reliability makes it an excellent choice for DIY camp kitchen modifications or upgrading stock water hose connections.

These inserts are best suited for the gear tinkerer who values functional performance over brand-name prestige. By incorporating these into existing systems, the risk of connection leaks is significantly reduced without requiring a major budget overhaul. They are a sensible addition to any spare parts kit, providing a cost-effective solution for common pressurized system failures.

Festo Aluminum Tube Insert: Best for Air Lines

When weight management becomes a critical factor for thru-hiking or lightweight mountaineering, aluminum inserts offer a lightweight alternative to traditional metals. The Festo aluminum tube insert is engineered for precision in pneumatic lines, ensuring that air-based pressurized systems maintain steady pressure without the bulk of brass. Its lightweight profile makes it an easy inclusion in an ultralight repair kit.

Because aluminum is softer than steel or brass, these are best used in systems where vibration and constant mechanical shock are minimized. They provide a smooth, clean interior bore that ensures unobstructed flow through the line. For the adventurer looking to shave ounces without sacrificing the structural support of a metal insert, these are an essential gear choice.

John Guest Speedfit Insert: Easiest to Install

The John Guest Speedfit system is designed for the adventurer who prefers efficiency and simplicity in their equipment assembly. These inserts are purpose-built for push-fit connections, making them the most user-friendly option on the market for quick trailside repairs. Their unique geometry ensures that even a novice can achieve a secure, leak-proof seal on the first attempt.

These are particularly useful for day hikers or car campers who want to customize their water delivery setups without needing specialized tools. While they are predominantly plastic, they are high-strength polymers designed to withstand the rigors of frequent connection and disconnection. If you value ease of use and rapid setup over long-term mechanical hardening, look no further than this system.

Legris Delrin Support Insert: Best Lightweight

Delrin, a high-performance acetal resin, provides a unique middle ground between the lightness of plastic and the mechanical strength of metal. The Legris Delrin support insert is virtually immune to the corrosive effects of moisture and chemicals, making it a versatile choice for diverse environments. Its lightweight, non-metallic construction also prevents the “cold-transfer” issue, where metal components might become brittle in sub-zero alpine conditions.

This insert is the top recommendation for those venturing into harsh, unpredictable weather where metal parts might expand or contract at different rates than the tubing. Because Delrin is resilient and slightly flexible, it absorbs minor vibrations that could lead to micro-fractures in more rigid materials. It is the sophisticated choice for the experienced outdoorsperson who balances weight, durability, and environmental performance.

How to Choose the Right Insert for Your Project

Selecting the right support depends heavily on the operating pressure of your system and the environmental temperature. For high-pressure water pumps, gravitate toward the structural rigidity of brass or stainless steel. For low-pressure fuel lines or air setups in temperate conditions, lightweight polymers or aluminum will suffice.

• Weight Sensitivity: Opt for Delrin or Aluminum for thru-hiking.
• Corrosion Resistance: Use Brass or Delrin for water-heavy or coastal environments.
• Mechanical Stress: Choose Stainless Steel for expedition-grade or high-impact use.

Always verify the compatibility between the insert material and the tubing grade. A mismatch here—such as using an oversized insert in thin-walled tubing—can lead to irreversible damage or a compromised seal.

Matching Insert Size to Tubing Outer Diameters

Precision is paramount; an insert that is even a fraction of a millimeter too large will cause the tubing to bulge or split. Conversely, an insert that is too small will fail to support the wall, resulting in a leak under pressure. Always measure the inner diameter (ID) of the tubing with digital calipers rather than relying solely on the manufacturer’s labeled size.

• Check the ID: The insert’s outer diameter must match the tubing’s inner diameter exactly.
• Standardization: Stick to standardized metric or imperial sizes to ensure compatibility across different brands.
• Tolerance: Account for the tubing’s wall thickness, as thicker walls require slightly different insert geometries to sit flush.

Pro Tips for Installing Inserts Without Damage

To seat an insert properly, apply a light coat of silicone lubricant to the exterior of the insert to reduce friction. Use a blunt-nosed pliers or a dedicated insertion tool to press the component fully into the tubing until the shoulder of the insert meets the cut edge of the tube. Avoid using sharp-edged tools like screwdrivers, which can easily nick the tubing and create a permanent leak path.

Ensure the tubing ends are cut perfectly square using a dedicated tube cutter. A jagged or angled cut will prevent the insert from seating flush and will inevitably lead to a failure under pressure. Taking the extra thirty seconds to ensure a clean, square end is the single most effective way to prevent future system failures.

Troubleshooting Leaks in Pressurized Systems

If a system begins to hiss or drip, the first step is to check the connection for any “flat spots” or deformities in the tubing. If the tubing looks perfectly round, the insert may have migrated or been installed at a slight angle, preventing the fitting from sealing correctly. Disassemble the connection, inspect the insert for signs of scoring, and replace it if the surface is no longer perfectly smooth.

• Listen for Hissing: Often, a subtle sound will precede a visible leak in air or gas lines.
• Check for Moisture: A slight dampness at the fitting is the first sign of a degrading seal.
• Re-seat the Tubing: Sometimes, simply pushing the tubing further into the fitting will resolve a minor pressure drop.

Properly maintained equipment rarely fails when treated with care, but carrying a few spare inserts in your repair kit is a small price to pay for peace of mind. By understanding how these components interact with your specific system, you ensure that your gear stays functional, allowing you to focus on the trail ahead rather than the technicalities of your plumbing. Invest in the right hardware now, and the wilderness will remain accessible for years to come.
