6 Portable Pressure Gauges For Hydraulic System Monitoring

When a remote worksite suddenly loses hydraulic pressure, the difference between a minor delay and a trip-ending failure comes down to having the right diagnostic tools on hand. Precision monitoring isn’t just for heavy-duty construction; it is the backbone of keeping essential equipment running smoothly in the backcountry. Selecting a reliable pressure gauge ensures that every ounce of fluid power is channeled correctly, keeping the mission moving forward regardless of how far the nearest service center might be.

Disclosure: As an Amazon Associate, this site earns from qualifying purchases. Thank you!

Fluke 700G Precision Gauge: Best Overall Choice

The Fluke 700G stands out as the gold standard for those who demand uncompromising accuracy without the burden of excessive complexity. Its rugged construction thrives in environments where dust, moisture, and vibration are constant variables. If you need a single, dependable tool that covers most field diagnostic needs, this is the definitive choice.

The interface is intentionally straightforward, allowing for rapid pressure checks without navigating cumbersome menus. This is vital when working under time pressure or in less-than-ideal weather conditions where focus needs to be on the equipment rather than the diagnostic screen. It handles high-pressure applications with poise, making it a reliable partner for those who prioritize consistency.

While it commands a higher price tag, the investment pays off in the longevity and peace of mind it provides. It is best suited for professionals or serious enthusiasts who view their gear as a long-term asset rather than a temporary fix. For anyone wanting a tool that works correctly the first time, every time, the 700G is the correct move.

Stauff SPG-DIGI: Top Pick For Rugged Field Use

When terrain becomes unforgiving and your tools are inevitably bumped against steel frames and rock, the Stauff SPG-DIGI is the gauge to have. Its impact-resistant housing and robust display protection make it nearly impervious to the hazards of trail-side repairs. It is specifically engineered to survive the rough handling that defines true off-grid operations.

Beyond its physical toughness, the internal components are shielded against the wide temperature swings found in alpine or desert climates. Many gauges suffer from erratic readings when the mercury drops, but the SPG-DIGI remains stable. It provides reliable data points even when the external conditions are pushing the limits of the operator.

Choose this unit if your diagnostic work takes place in the back of a truck, on a remote trail, or in active construction zones where drops are a matter of “when” rather than “if.” It sacrifices nothing in accuracy for its hardened exterior. For those who need a workhorse that doesn’t require babying, this is the definitive answer.

WIKA CPG1500: Premium Choice For Data Logging

The WIKA CPG1500 elevates pressure monitoring by adding sophisticated data logging capabilities to a high-precision sensor. This allows the user to record pressure cycles over time, identifying subtle anomalies that a standard spot-check would miss. It is essentially a flight recorder for a hydraulic system.

For complex hydraulic setups where intermittent pressure spikes cause erratic behavior, the ability to analyze a data set is invaluable. The software interface is clean, allowing for easy export to a laptop for detailed review once you reach base camp or a stable office environment. It bridges the gap between simple field diagnostics and advanced engineering analysis.

This gauge is recommended for those tackling advanced mechanical troubleshooting who require a deeper understanding of system performance. It is a premium tool for the meticulous technician who wants to solve the root cause of a failure rather than just treating the symptoms. If data-driven decision-making is a priority, do not look past the CPG1500.

Ashcroft 2074: Best Industrial Digital Gauge

The Ashcroft 2074 excels by providing a high-visibility, easy-to-read display that performs well in both bright sunlight and low-light environments. Its industrial-grade sensor technology offers excellent repeatability, which is crucial when verifying that repairs have restored a system to its original performance factory specifications. It bridges the gap between heavy industry and mobile field service.

Ease of use is the standout feature here, as the intuitive button layout minimizes the learning curve. This is particularly useful when multiple people might be using the same kit, as it reduces the chance of input errors. It offers a no-nonsense experience that keeps the workflow efficient and the testing process transparent.

This is the ideal choice for those who value efficiency and simplicity over advanced logging features. It is perfectly positioned for routine maintenance schedules and quick field verification. For a reliable, high-performing gauge that does exactly what it says on the tin, the Ashcroft 2074 is a rock-solid investment.

Hydac HMG 2500: Best For Complex Diagnostics

When a hydraulic system involves intricate valves, accumulators, and multi-stage pumps, a standard gauge often leaves questions unanswered. The Hydac HMG 2500 functions as a portable handheld computer capable of reading multiple sensors simultaneously. It provides a comprehensive picture of system health that single-sensor gauges simply cannot replicate.

This unit is designed for the user who is comfortable with higher levels of system complexity and wants to verify balance across different sectors of a circuit. While it requires a larger investment of both money and learning time, the diagnostics it enables are unparalleled. It is the ultimate diagnostic kit for those managing high-performance or specialized machinery.

Opt for the HMG 2500 if you are managing complex hardware where total system integration is required. It is not for the occasional user, but for the serious practitioner who demands deep insights. If you need to see the “big picture” of your hydraulic flow, this is the hardware you need.

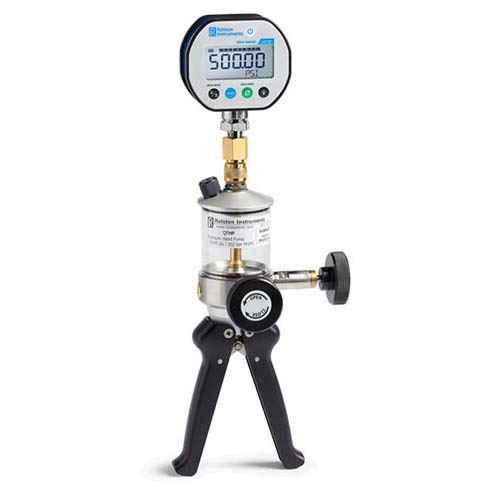

Ralston LC10: Excellent Budget-Friendly Option

The Ralston LC10 delivers high-quality readings without the high cost of premium data-logging models. It is a streamlined tool that focuses on the core task of accurate pressure measurement. This makes it an ideal starting point for anyone building their first professional-grade mobile service kit.

Despite the lower price point, the construction is solid and reliable. It lacks some of the bells and whistles of the high-end units, but it never compromises on the accuracy of the reading itself. For most field applications, this is perfectly adequate for diagnosing leaks, checking pump output, or verifying set pressures.

If you are budget-conscious but unwilling to sacrifice accuracy, the LC10 is a brilliant choice. It leaves more room in the budget for high-quality hoses and adapters, which are just as critical as the gauge itself. For the practical enthusiast who prefers high value over excessive features, this gauge is a perfect fit.

How To Choose A Hydraulic Gauge For Your Rig

When selecting a gauge, the most critical factor is ensuring the pressure range covers your system’s maximum relief valve setting. Never choose a gauge with a maximum range that is too low, as this risks internal damage during a pressure spike. Conversely, a gauge that is significantly oversized will result in poor resolution and difficult reading accuracy.

Consider the connection type, as incompatible fittings are the most common cause of frustration in the field. Always carry a selection of adapters to ensure your gauge can interface with different equipment brands. A universal set of fittings saves more time than the most expensive digital display ever could.

Finally, think about your primary operating environment. If you work primarily in high-heat or extreme-cold conditions, ensure the gauge’s operating temperature range matches your reality. A tool that fails at 0 degrees is useless during a winter repair, regardless of its accuracy.

Maintaining Calibration In Harsh Environments

Hydraulic gauges are precision instruments that require regular care to remain accurate. Even a rugged unit can drift over time due to repeated pressure shocks or thermal cycling. Establish a periodic calibration schedule, or at least a “master gauge” comparison test, to verify that your reading remains true.

Keep the sensor port clean and free of debris at all times. Even a tiny piece of grit can cause a false reading or damage the sensitive internal diaphragm. Always use protective caps when the gauge is not in use, and store it in a dedicated, padded case to prevent unnecessary physical shock during transit.

Be wary of over-tightening during installation. Use only the necessary amount of force to ensure a seal; excessive torque can deform the connection block or strain the internal mounting. Treat the gauge as a delicate tool while in use, even if the exterior housing is built to take a beating.

Essential Safety Tips For Testing Fluid Lines

Hydraulic systems operate under extreme pressure, often high enough to cause severe injury if a hose or fitting fails. Never attempt to tighten or adjust a connection while the system is under pressure. Always discharge trapped pressure completely through a bleed valve before disconnecting any test equipment.

Always wear appropriate eye protection when working with pressurized lines, as fluid mist or debris can be ejected at high velocities. Stay clear of the direct line of fire from any connection you are testing. If you spot a pinhole leak in a hose, treat it with extreme caution and replace the entire hose assembly immediately; never attempt to “patch” a high-pressure line.

Finally, maintain a clear workspace to avoid tripping or knocking equipment over during a test. Hydraulic fluid is slippery and hazardous to the environment; always have absorbent materials or a secondary containment tray on hand to prevent spills. A safe site is the only site where repairs should be attempted.

Digital vs Analog Gauges For Field Applications

Digital gauges provide superior readability and precision, which is helpful when you are working in low light or need to record exact pressure numbers. Their ability to switch units—from PSI to Bar or MPa—adds versatility if you work on international equipment. However, they rely on batteries, which can fail at the worst possible moment.

Analog gauges are the reliable, “no-battery” alternative that provides a classic, mechanical sense of pressure fluctuation. They are generally more resistant to electromagnetic interference and can be cheaper to replace. They lack the precision of digital units but offer a “set it and forget it” simplicity that many seasoned technicians prefer.

Ultimately, the choice depends on your confidence in battery management and the need for precision. Carry a reliable digital unit for primary diagnostics, but keep a high-quality analog gauge as a backup in your kit. This redundant approach ensures you are never stuck without the ability to verify pressure, regardless of the situation.

Mastering hydraulic monitoring is the hallmark of a self-sufficient adventurer who takes equipment reliability seriously. By investing in the right gauge and adhering to proper safety protocols, you transform from someone who worries about mechanical failure into someone who actively manages it. Keep your gear calibrated, respect the pressure, and continue finding new ways to push further into the wild.

Frequently Asked Questions (FAQs)

What is a portable pressure gauge for hydraulic system monitoring?

A portable pressure gauge for hydraulic system monitoring is a handheld instrument used to measure fluid force inside pumps, cylinders, and valves during field maintenance. These tools typically feature quick-disconnect couplings like Minimess 1215 or 1620 fittings and measure ranges between 0 and 10,000 PSI (0 to 700 bar). Technicians use them to diagnose relief valve settings, detect pump cavitation, and verify operating pressures on mobile construction equipment or industrial machinery.

What does a liquid filled hydraulic pressure gauge do?

Liquid filled hydraulic pressure gauges use viscous fluid, usually glycerin or silicone oil, to dampen rapid pressure pulsations and mechanical vibrations within the hydraulic circuit. This fluid protects the internal delicate Bourdon tube and gear movement from premature wear and shock damage. Liquid filling also lubricates internal components and prevents condensation from clouding the gauge face in humid or cold outdoor work environments.

How do I connect a portable pressure gauge to a hydraulic test port?

Connect a portable pressure gauge to a hydraulic test port by cleaning the test point coupling, removing its protective cap, and screwing on the matching micro-bore test hose. Ensure the hydraulic system is idling or depressurized before attaching threaded couplers, although specialized test points like Minimess allow connection under full pressures up to 9,000 PSI without fluid leakage. Hand-tighten the swivel nut until the internal check valve opens and displays pressure.

How do I calibrate a portable hydraulic pressure gauge?

Calibrate a portable hydraulic pressure gauge by comparing its readouts against a certified reference gauge on a hydraulic deadweight tester or comparison test pump. Apply pressure across five evenly spaced test intervals up to full scale, such as 2,000, 4,000, 6,000, 8,000, and 10,000 PSI. If readings deviate beyond the specified accuracy tolerance, adjust the gauge span calibration screw or zero-point potentiometer, or send the unit to an ISO 17025 accredited laboratory.

Digital vs analog portable pressure gauges for hydraulic field service which is better?

Digital portable pressure gauges are better for capturing transient pressure spikes and recording data, whereas analog gauges excel in basic troubleshooting without requiring battery power. Digital meters often deliver accuracies around 0.1% to 0.25% full scale and feature peak-hold functions that catch pressure spikes lasting only milliseconds. Analog Bourdon gauges offer 1.0% to 1.6% accuracy, cost significantly less, and withstand physical abuse on construction sites without electronic failures.

How much does a portable hydraulic pressure test kit cost?

Portable hydraulic pressure test kits typically cost between $150 and $2,500 depending on gauge technology, brand, and included fittings. Entry-level analog diagnostic kits with three liquid-filled gauges and standard couplings start around $150 to $350. Professional digital testing kits from brands like Parker, Webtec, or Fluke with data-logging software, high-accuracy digital transducers, and heavy-duty blow-molded carrying cases cost between $1,200 and $2,500.

Why is my portable hydraulic pressure gauge needle vibrating erratically?

Erratic needle vibration on a portable hydraulic pressure gauge usually stems from severe pump pulsation, entrapped air, or mechanical machine vibration transmitting through the hydraulic line. Piston pumps and relief valve chatter create rapid hydraulic shock waves that cause pointer flutter. To resolve this issue, install a pressure snubber or needle valve upstream of the gauge to restrict pulsation, or swap the dry gauge for a glycerin-filled unit to dampen movement.

Is it safe to leave a portable pressure gauge connected to high pressure hydraulics continuously?

Leaving a portable pressure gauge connected continuously to high-pressure hydraulics is not recommended due to the risk of fatigue failure from prolonged pressure spikes and mechanical stress. Portable testing gauges and flexible micro-bore hoses are designed for intermittent diagnostic checks rather than permanent installation. Continuous exposure to hydraulic fluid hammering can rupture internal Bourdon tubes or blow out hose seals, creating dangerous fluid injection hazards for nearby operators.
