6 Best Conduit Fittings For Protecting Vehicle Wiring Setups

Electrical gremlins are the silent trail-killers of any overlanding rig or remote adventure vehicle. When vibrations, moisture, and road grit conspire to compromise wiring, a reliable conduit setup becomes the difference between reaching the trailhead and an expensive tow. Securing those connections with the right fittings ensures the electrical backbone of an adventure vehicle stays robust through every washboard road and mountain pass.

Disclosure: This site earns commissions from listed merchants at no cost to you. Thank you!

Del City Liquid-Tight: Best for Weatherproofing

When operating in environments prone to heavy rain, deep water crossings, or road salt, moisture intrusion is the primary threat to wiring longevity. Del City Liquid-Tight fittings utilize high-quality seals that grip conduit securely, creating an impenetrable barrier against the elements. This level of protection prevents the corrosion that inevitably cripples electrical systems over time.

These fittings are the gold standard for under-chassis routing where exposure to mud and debris is constant. While they are slightly bulkier than standard connectors, the peace of mind offered by their IP-rated seal is worth the minimal space trade-off. They provide a professional-grade finish that keeps sensitive wires dry regardless of the weather conditions.

Choose these if the goal is long-term reliability in wet climates or coastal environments. If the build is strictly for dry-weather use, the added weight and cost might be unnecessary. For any vehicle destined for serious off-road terrain, however, this should be the default choice for external junctions.

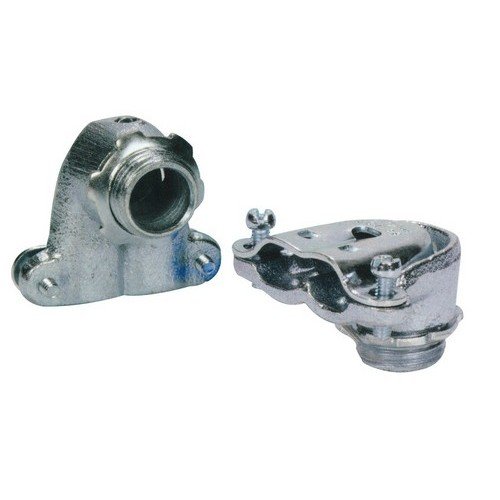

Heyco-Flex 90°: Best for Tight Engine Bay Turns

Engine bays are notoriously crowded, forcing wires into sharp bends that often result in crimped lines or exposed conductors. The Heyco-Flex 90° fitting solves this geometry problem by providing a clean, factory-style turn without kinking the conduit. It relieves physical stress on the wiring, preventing fatigue-related failures common in high-vibration zones.

The low-profile design of this fitting ensures it stays tucked away from moving engine components like belts or cooling fans. It effectively maintains the integrity of the conduit radius, which is essential for preserving the flexibility of the enclosed cables. A smooth internal bore also ensures that wires can be pulled through without snagging or damaging the insulation.

This fitting is essential for complex engine management setups or accessory lighting installations where space is at a premium. It is a precise tool for those who prioritize organization and structural longevity. For a clean, efficient engine bay layout, there is no substitute for the precision these 90-degree elbows offer.

Ancor Bulkhead Union: Best Firewall Passthrough

Passing wires through a firewall is a critical juncture where fire safety and weather sealing meet. Ancor Bulkhead Unions provide a rigid, secure mount that anchors the conduit to the metal surface, preventing friction-induced wear. This fitting locks firmly into place, ensuring the transition from engine bay to cabin remains airtight and secure.

Unlike flimsy grommets that can pop out under pressure, a bolted bulkhead union offers a permanent, vibration-resistant solution. It creates a clean entry point that prevents chafing against sharp metal edges, which is a leading cause of vehicle electrical fires. Installation is straightforward, provided one has the tools to cut a precise hole in the firewall.

This is a mandatory upgrade for anyone running high-amperage cables for auxiliary batteries or winches. It is the safest way to transition between different zones of the vehicle. Prioritize these for any permanent installation where safety and long-term chassis integrity are the top priorities.

T-Spec T-Splitter: Best for Branching Your Loom

Managing multiple electrical runs often leads to a tangled mess of wires near the fuse block or battery. T-Spec T-Splitters allow for logical, organized branching of the conduit, keeping different circuits separated yet protected. They eliminate the need for excessive taping or zip-tying multiple lines together, resulting in a system that is easy to troubleshoot and modify.

These splitters are designed for durability, featuring robust housing that resists impacts and thermal cycling. By splitting the conduit at consistent intervals, the entire installation takes on a factory-built aesthetic that is much easier to maintain. They are particularly effective when routing lighting harnesses along a roof rack or across the front grille.

Use these to streamline complex builds where several accessories share a common routing path. They minimize the amount of conduit required, which keeps the total weight of the wiring harness down. For those who frequently add new gear to a rig, T-Splitters make future upgrades much less of a headache.

DEI Fire Sleeve: Best for High-Heat Protection

In high-performance engines or vehicles with cramped exhaust clearances, radiant heat can melt standard nylon conduit in minutes. The DEI Fire Sleeve acts as a thermal shield, reflecting heat away from the sensitive electrical lines inside. It is designed specifically for extreme conditions, ensuring that wiring stays pliable and functional under high thermal loads.

While not a traditional plastic fitting, this sleeve is the ultimate defense for electrical paths near headers, turbochargers, or catalytic converters. It is flexible and easy to apply, often using hook-and-loop or slide-on configurations that don’t require disconnecting the wires. It provides a level of heat resistance that standard PVC or nylon conduits simply cannot match.

If the project involves high-output engines or tight clearances near the exhaust, heat management is non-negotiable. Using standard conduit in these areas is a recipe for a roadside breakdown. Incorporate DEI Fire Sleeves to ensure electrical reliability in the hottest parts of the vehicle.

Electriduct Y-Fitting: Best Easy-Install Split

When a circuit needs to branch off into two distinct directions without the bulk of a rigid junction box, an Electriduct Y-Fitting is the ideal compromise. These fittings are lightweight and offer a sleek, low-profile way to divide a conduit path. They are especially useful for simple accessory installations like splitting a main power line to two different auxiliary lights.

The design allows for quick installation, often snapping over the existing conduit, which saves significant labor time. While they may not provide the same hermetic seal as a high-end compression fitting, they offer sufficient protection for internal cabin or engine-bay locations. They bridge the gap between permanent, heavy-duty junctions and temporary setups.

Choose these for their ease of use and versatility. They are not intended for high-moisture exterior exposure, but for the majority of standard auxiliary electrical tasks, they are perfectly adequate. They represent a balanced choice between cost, performance, and installation speed.

Choosing Your Fitting: Metal vs. Nylon vs. PVC

The material of your fitting determines its environmental resilience and overall lifespan. Metal fittings offer the best mechanical protection and are virtually indestructible, making them ideal for heavy-duty off-road use. However, they are heavy and can be prone to galvanic corrosion if not properly coated or compatible with the chassis material.

Nylon fittings are the standard for most automotive applications because they are lightweight, chemically resistant, and incredibly durable under vibration. They do not rust, making them superior to cheap metal alternatives in damp conditions. Nylon is the “goldilocks” material for the vast majority of adventure builds, offering the best balance of strength and weight.

PVC fittings are generally discouraged for automotive engine bays as they become brittle with age and heat. They are acceptable for interior or under-dash use, but should be avoided near any heat source or in areas subject to significant physical impacts. Always prioritize nylon or high-grade composites to ensure the wiring setup survives the rigors of the trail.

How to Correctly Size Fittings and Conduit

The most common mistake when installing conduit is overcrowding, which restricts airflow and makes troubleshooting nearly impossible. A general rule of thumb is to fill no more than 40% of the conduit’s internal volume with wires. This allows for heat dissipation and ensures that wires can be pulled through or adjusted without requiring extreme force.

Always match the fitting size exactly to the conduit’s outer diameter to ensure a tight, reliable seal. If the fitting is too large, moisture will enter the system; if it is too small, the conduit will collapse and damage the insulation. Measure the wire bundle diameter first, select the appropriate conduit, and then order the fittings that correspond to that specific conduit size.

When in doubt, step up one size rather than squeezing the loom into a tighter conduit. Extra space does not hurt performance, but a tight fit leads to insulation chafing and internal shorts. Taking the time to size components correctly is the foundation of a professional-grade electrical system.

Pro Tips for a Clean and Secure Installation

A secure installation relies as much on support as it does on protection. Use P-clips or cable ties every 12 to 18 inches to prevent the conduit from sagging or rubbing against sharp chassis components. If a conduit is allowed to vibrate, it will eventually wear through both the conduit and the wires inside, regardless of how high-quality the fittings are.

Always aim for a “downhill” drainage path for any exterior wiring. If you must have a high point, ensure the entry/exit points are sealed with silicone or proper compression fittings to prevent water from wicking into the conduit. This simple attention to orientation prevents the “straw effect,” where water is channeled directly into sensitive connectors.

Finally, keep a small amount of slack at every connection point. Engines move under load, and suspensions articulate during off-road travel. If your wiring is pulled taut, that movement will eventually rip a connection apart or pull a terminal from its socket. Leave enough loop to accommodate the full range of motion for any given component.

FAQs: Sealing, Securing, and Common Mistakes

How do I keep water out of my conduit? Use silicone dielectric grease at the entry points and ensure all fittings are properly tightened to their compression point. For critical junctions, a dedicated shrink-wrap boot or self-fusing silicone tape adds an extra layer of defense against moisture.

Can I use zip ties to secure my conduit? Yes, but avoid over-tightening them, as they can deform the conduit and crush the wires inside. Use UV-rated zip ties to prevent them from snapping under sun exposure and replace them every few years as part of your routine maintenance.

Why does my conduit keep melting? Melting is almost always caused by proximity to exhaust components or the engine block. Move the wiring run away from the heat source, or wrap the conduit in a dedicated thermal blanket or reflective heat sleeve to mitigate the temperature.

Properly protected wiring is the hidden champion of a reliable vehicle. By selecting the right fittings and taking the time to route your loom with care, you eliminate the risks that turn simple outings into long nights on the shoulder of the road. Invest in the gear that protects your electrical system today, and enjoy the confidence that your rig will handle whatever the terrain throws your way tomorrow.
