6 Best Stainless Steel Rivet Nuts For Custom Roof Rack Builds

Customizing a roof rack is the ultimate way to transform a vehicle into a genuine adventure rig, but the integrity of that build hinges entirely on the hardware connecting it to the roof. Relying on flimsy fasteners in high-wind conditions or on rough logging roads is a recipe for disaster. Selecting the right stainless steel rivet nuts ensures that every light bar, solar panel, and storage box stays exactly where it belongs, mile after rugged mile.

Disclosure: This site earns commissions from listed merchants at no cost to you. Thank you!

Astro Pneumatic 304 Rivnuts: Best Overall

For the builder who wants a “set it and forget it” solution, these 304-grade stainless steel rivet nuts are the industry standard. They offer a perfect balance between tensile strength and malleability, allowing for a tight, reliable grip without cracking the substrate during installation.

These are the go-to choice for mounting roof rack tracks onto thin-gauge vehicle sheet metal where vibration resistance is critical. Because of their consistent manufacturing tolerances, you can trust them for both heavy-duty rack systems and lighter-weight accessory mounts. If you want a dependable, professional-grade fastener that won’t require a second guess, the Astro Pneumatic line is the definitive choice.

Glarks Stainless Rivet Nut Kit: Best Value

If the project involves a diverse range of accessories, buying fasteners in bulk is a wise financial move. This kit provides a wide array of sizes, making it an excellent resource for those prototyping a custom build who might not know their exact thread requirements until the rack is mocked up.

While the material quality is perfectly sufficient for standard rack applications, the primary draw here is the sheer versatility of the kit. It eliminates the need to run to the hardware store mid-project when a bolt length or thread pitch needs to change. For DIY enthusiasts on a budget who prioritize having the right tool for every potential hurdle, this kit is an essential garage companion.

Sherex Hex Body Rivnuts: Best Anti-Spin

Round rivet nuts have a tendency to rotate in their holes over time, especially when subjected to the high torque of a heavy rack system bouncing down a washboard trail. Sherex hex body fasteners solve this by seating into a hexagonal hole, creating a mechanical lock that prevents the nut from spinning even if the bolt seizes.

This design is a non-negotiable feature for those building high-profile racks that will experience significant wind shear. While they do require a hex-shaped punch or a steady hand with a file to prepare the hole, the security payoff is immense. For anyone planning a long-term build that will be subjected to intense vibrations, the anti-spin geometry of these fasteners is worth the extra installation effort.

RMG 316 Marine Grade Rivnuts: Best for Rust

Adventure often leads to coastal environments, where salt spray can turn standard steel into a corroded mess within a single season. 316-grade stainless steel contains molybdenum, which significantly increases resistance to pitting and chloride corrosion compared to standard 304-grade alloys.

These fasteners are the only logical choice for rigs operating in maritime climates or regions that heavily salt their roads during winter. They are slightly harder to install due to the material’s density, but that durability is essential for the longevity of the roof structure. If the vehicle lives near the coast, opting for 316 grade is the most responsible way to protect your investment.

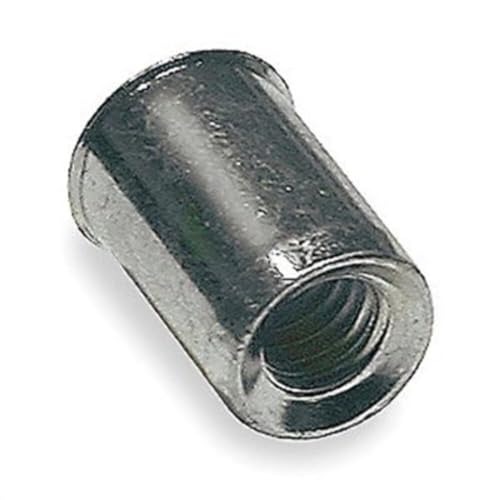

Marson Klik-Poly-Nut: Best for Heavy Loads

When the plan involves mounting a full-length expedition rack designed to carry rooftop tents and heavy recovery gear, standard thin-wall rivnuts may not suffice. Marson’s reinforced design is engineered specifically for high-load, heavy-duty applications where shear strength is the primary concern.

These fasteners provide a broader surface area upon collapse, which effectively distributes the load across a larger portion of the roof panel. They offer peace of mind when venturing into remote backcountry where gear failure could strand the trip. For builders who refuse to compromise on structural capacity, these heavy-duty nuts provide the necessary confidence for serious hauling.

BCP 1/4-20 Stainless Rivnuts: Best for DIY

The 1/4-20 thread pitch is the universal language of roof rack accessories, making these BCP fasteners compatible with almost every rack mounting bracket on the market. They are simple to install with a standard hand-tool, making them accessible even for those with minimal metalworking experience.

These are best suited for smaller, modular projects like mounting light pods or individual accessory brackets to a roof rail. They offer a straightforward, reliable connection that doesn’t require specialized knowledge or advanced tooling. If you are starting your first roof rack modification, these provide a low-risk, high-reward entry point into custom hardware installation.

Choosing the Right Rivnut Size for Your Rack

Selecting the correct rivet nut size starts with matching the bolt diameter to the weight load of the accessory. While 1/4-20 is a standard for small items, larger roof racks, particularly those carrying tents, should move toward 5/16 or 3/8-inch fasteners to account for increased leverage and weight.

Always check the “grip range” of the specific rivet nut, which dictates the thickness of the material it can successfully clamp. Using a nut meant for thick plate on thin sheet metal will result in a loose, insecure mount that will eventually rattle. When in doubt, measure the roof skin thickness precisely and select a fastener that sits right in the middle of its specified range.

Essential Tools for a Secure Installation

Attempting to install a rivet nut with a DIY bolt-and-nut setup is a common mistake that often leads to stripped threads or improper seating. A dedicated rivet nut tool provides the consistent, controlled pull force required to flare the backside of the fastener into a secure, permanent attachment.

For those who plan to install more than a dozen rivnuts, a pneumatic or lever-action manual tool is worth the investment to ensure every fastener is set to the same tension. A high-quality tool allows for better control, reducing the risk of over-compressing the nut and weakening the metal. Always keep a spare mandrel for the tool, as these are the most common points of failure during the installation process.

Sealing Your Rivnuts to Prevent Roof Leaks

The biggest threat to a roof rack build is not the rack failing, but the roof rusting out from water ingress through the mounting points. Every single rivet nut must be installed with a high-quality, weather-resistant sealant like silicone or a specialized automotive-grade butyl adhesive.

Apply the sealant generously to both the underside of the fastener’s flange and the threads of the bolt before final tightening. This creates a waterproof gasket between the fastener and the roof sheet metal, preventing water from wicking into the vehicle’s interior. A few extra minutes spent sealing during installation saves hours of headache caused by water damage and headliner mold later on.

Understanding Roof Load Ratings and Safety

Every vehicle manufacturer publishes a dynamic and static load rating for their roof, and exceeding these limits invites structural fatigue or dangerous handling characteristics. The dynamic rating, which applies while the vehicle is in motion, is usually significantly lower than the static rating because of the forces generated by bumps and wind.

Remember that the strength of the mounting hardware is only as good as the metal it is attached to. Even the strongest stainless steel rivnut can tear out if it is installed in a weak spot of the roof panel or if the load is poorly distributed. Always mount your racks as close to the roof’s structural pillars as possible and distribute the weight evenly to ensure the safety of both the vehicle and those traveling behind it.

Building a secure roof rack system is a process that balances material science with careful execution. By selecting the right stainless steel fasteners and taking the time to seal them properly, you provide the foundation for years of trouble-free exploration. Focus on precision during the installation phase, and you will be well-equipped to handle whatever the terrain throws your way.
